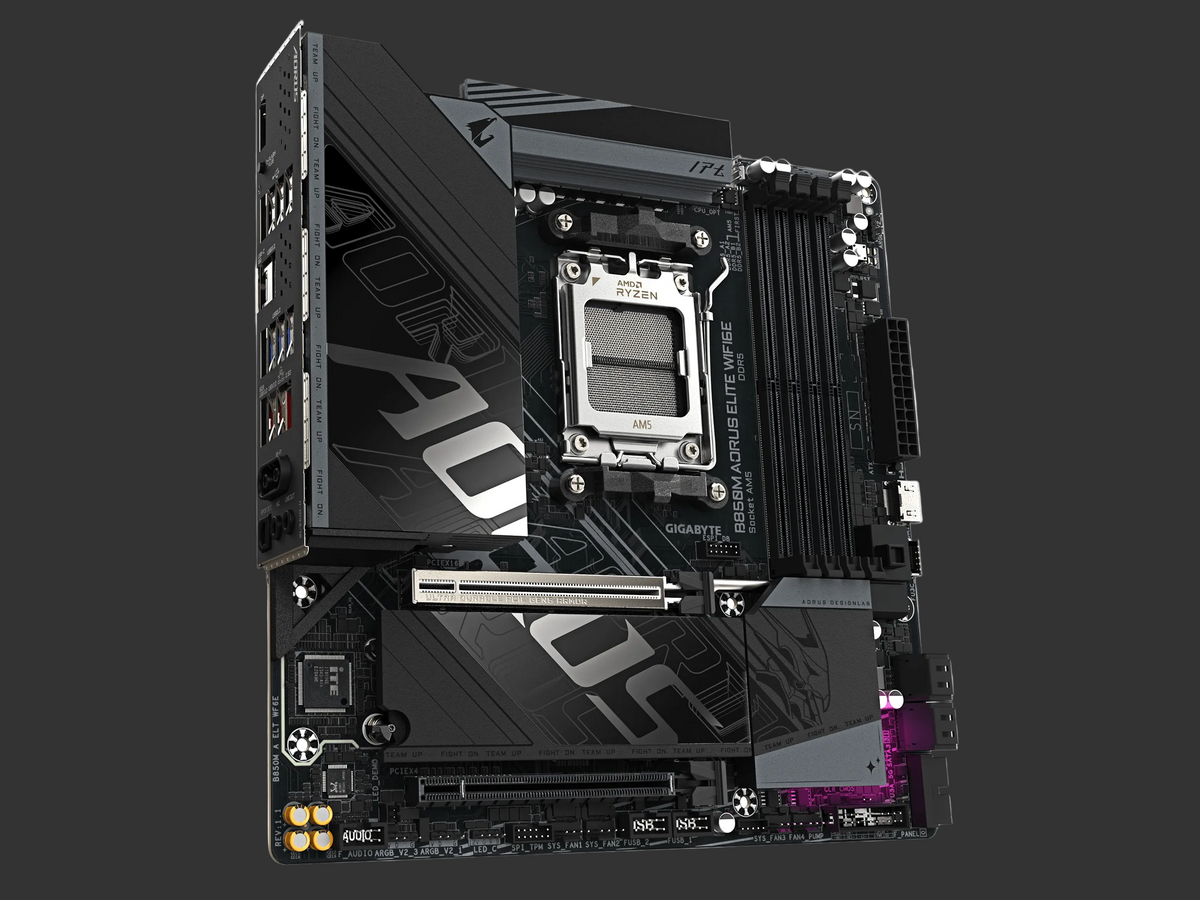

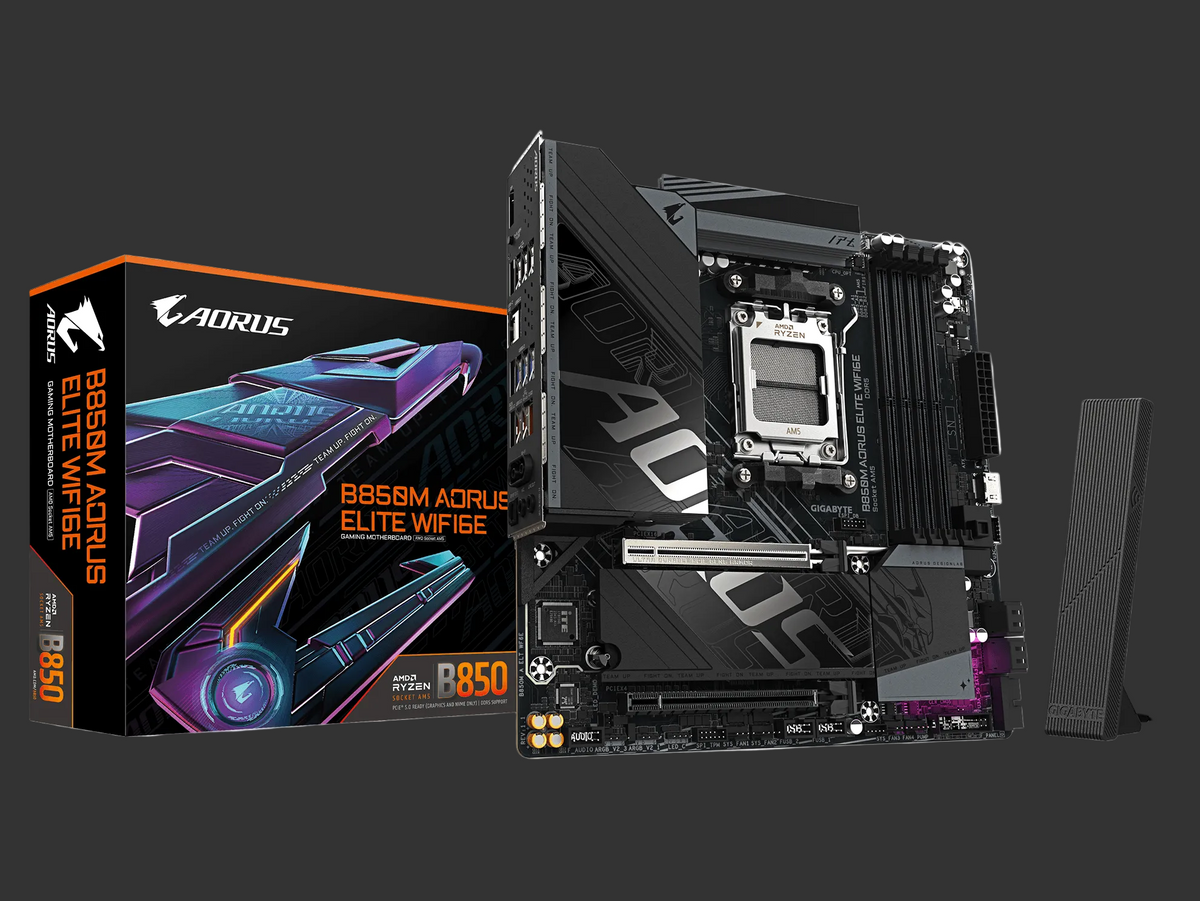

Gigabyte B850M AORUS ELITE WIFI6E AM5 mATX Motherboard

Gigabyte B850M AORUS ELITE WIFI6E AM5 mATX Motherboard

The Gigabyte B850M AORUS ELITE WIFI6E features a 12+2+2 twin digital VRM power design on the AMD B850 chipset, providing full Socket AM5 compatibility for AMD Ryzen 9000, 8000, and 7000 series processors in a compact Micro-ATX form factor. Built to support next-generation hardware standards within a space-saving footprint, this motherboard incorporates PCIe 5.0 bandwidth across both graphics and storage interfaces alongside fast DDR5 memory support.

Clean power architecture for multi-core Ryzen processors

Modern multi-core processors demand consistent electrical delivery to sustain boost clock speeds during heavy computing loads. The Gigabyte B850M AORUS ELITE WIFI6E utilizes a 12+2+2 Twin Digital VRM power phase layout engineered to distribute current smoothly to the processor socket. This power phase configuration ensures efficient voltage regulation across 12 VCORE phases for CPU core power, 2 SOC phases for integrated graphics and memory controllers, and 2 MISC phases for secondary rail stability.

Whether deploying an AMD Ryzen 9000, 8000, or 7000 series CPU for 3D rendering, video encoding, or high-framerate gaming, the robust power phase design minimizes voltage ripple and keeps VRM temperatures balanced under sustained compute operations.

PCIe 5.0 throughput for next-generation GPUs and NVMe drives

High-speed expansion slots are critical for preventing data bottlenecks between the CPU, graphics processor, and solid-state storage. The B850M AORUS ELITE WIFI6E provides high-bandwidth expansion options directly connected to the system architecture:

• PCIe 5.0 x16 Primary Expansion Slot: Delivers full bandwidth for current PCIe 4.0 graphics cards while providing double the potential throughput to accommodate future PCIe 5.0 GPUs.
• PCIe 5.0 x4 M.2 Slot: Supports high-speed PCIe 5.0 NVMe solid-state drives, enabling rapid game load times and instant file access for large media projects.
• PCIe 4.0 x4 M.2 Slot: Provides dedicated bandwidth for a secondary NVMe drive, expanding fast storage capacity for media libraries without compromising main slot performance.
• 4x SATA 6Gb/s Connectors: Allows connection of up to four standard 2.5-inch SSDs or 3.5-inch hard drives for mass data archival and backup storage.

High-density DDR5 memory performance up to 8200 MT/s

Equipped with four DDR5 DIMM slots operating in dual-channel architecture, the motherboard accommodates up to 256 GB of total system memory. This large memory capacity allows users to run memory-intensive creative applications, host multiple virtual machines, and manage complex multitasked workflows without encountering memory ceiling limits.

The board supports memory frequencies up to DDR5-8200 (O.C.), lowering system memory latency to maintain stable frame rates during intensive gaming sessions. Built-in compatibility with both AMD EXPO and Intel XMP profiles allows users to load optimized memory timings and voltages in the BIOS with a single selection, ensuring stable memory operation at target clock speeds.

2.5GbE wired network and integrated Wi-Fi 6E wireless

High-speed networking options ensure stable connection performance whether wired directly to a router or connecting over wireless networks:
