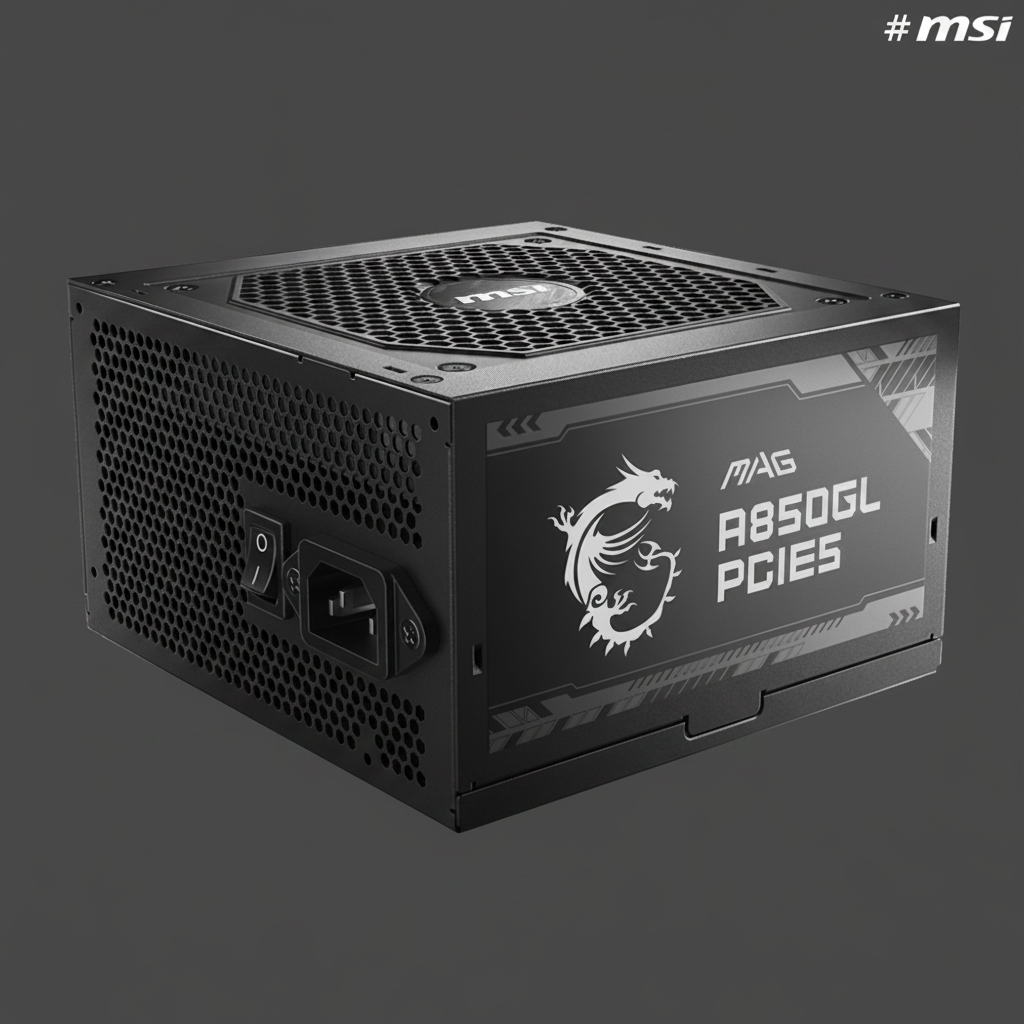

850W MSI MAG A850GL PCIE5 POWER SUPPLY
850W MSI MAG A850GL PCIE5 POWER SUPPLY
Regular price
$189.00
Regular price
Sale price
$189.00
Unit price
/
per
Couldn't load pickup availability
850W MSI MAG A850GL PCIE5 POWER SUPPLY
| Product Name | MAG A850GL PCIE5 |
| Model Name | TORX FAN 12CM |
| Weight (Card) | 169 g |
| Radiator Compatibility | 120 / 140 / 240 mm |
| Efficiency Rating | 80 PLUS Gold (up to 90%) |
| Modular | Yes (Full Modular) |
| Fan Dimensions | 120 × 120 × 25.6 mm |
| Fan Size | 120 mm |
| Fan Bearing | Fluid Dynamic Bearing |
| PSU Dimensions (DxWxH) | 140 × 150 × 86 mm |
| Bearing Type | Hydro-Dynamic Bearing |
| PFC Type | Active PFC |
| Rated Speed | 500 – 1800 ±15% RPM |
| Input Voltage Range | 100–240 VAC |
| Air Flow | 19.79 – 71.27 CFM |
| Power Watt | 850 W |
| Static Air Pressure | 0.16 – 2.09 mm-H₂O |
| Power Excursion | 1700 W (*up to 200% of PSU rated power for 100 μs) |
| Connector Type | 4-Pin PWM / DC |
| Input Frequency Range | 47–63 Hz |
| Life Expectancy | MTTF 150,000 Hours (25 ℃) |
| Protection | OCP / OVP / OPP / OTP / SCP / UVP |
| ATX (24-pin) | 1 |
| EPS (4+4-pin) | 2 |
| PCI-E 5.0 (16-pin) | 1 (600 W) |
| PCI-E (6+2-pin) | 4 |
| SATA (15-pin) | 8 |
| Peripheral (4-pin) | 4 |
| FDD (4-pin) | 1 |
