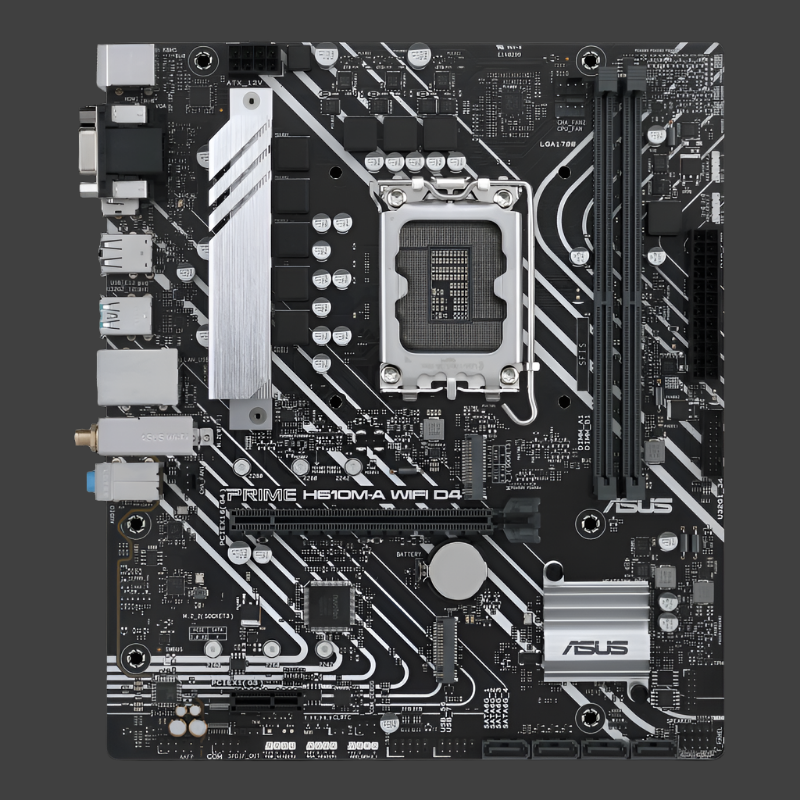

Asus PRIME-H610M-A-WIFI-D4 mATX motherboard

Asus PRIME H610M-A WIFI D4 – Micro ATX Motherboard

The Asus PRIME H610M-A WIFI D4 is a reliable and compact motherboard designed for 12th and 13th Gen Intel Core processors, ideal for home and office systems that require stable performance, wireless connectivity, and modern expansion features in a small form factor.

Key Specifications:

• CPU Support: Intel 12th & 13th Gen Core, Pentium Gold, and Celeron processors (LGA 1700 socket)

• Chipset: Intel H610

• Form Factor: Micro ATX (24.4 x 21.1 cm)

• Memory Support: 2× DDR4 DIMM slots, up to 64GB, 2133 to 3200 MHz (non-ECC, un-buffered)

• Graphics Outputs: 1× HDMI, 1× DisplayPort, 1× VGA (D-Sub)

• Expansion Slots: 1× PCIe 4.0 x16, 1× PCIe 3.0 x1

• Storage Options: 2× M.2 slots (NVMe SSD support), 4× SATA 6Gb/s ports

• Networking: Intel 1Gb Ethernet, integrated Wi-Fi 5 (802.11ac), and Bluetooth

• Audio: Realtek 7.1-channel High Definition Audio

• USB Ports: USB 3.2 Gen 1, USB 2.0 ports (rear and internal headers)

• Cooling Features: Multiple fan headers, ASUS Fan Xpert 2+

• Protection and Utilities: ASUS 5X Protection III, Armoury Crate, AI Suite 3, Q-LED Core
